Why Choose the ESL-MD Vacuum Tube Lifter?
1. Versatility Meets Power
The ESL-MD series effortlessly handles objects from 30kg to 200kg, regardless of shape or size. From delicate glass panels to bulky wood crates, its customizable suction heads adapt to your needs. No more bending, straining, or risking injury—this lifter does the heavy lifting for you.
2. Ergonomic Design for Fatigue-Free Operation
Equipped with curved pipe handles and intuitive left/right grip switches, the ESL-MD lets operators lift, move, or palletize items without bending down. Need to adjust for taller pallets? The handle length can be upgraded to match your workspace requirements.
3. Safety Built to Last
-
Anti-Drop Technology: Power failure? No problem. A built-in check valve ensures loads descend slowly and safely.
-
Overload Protection: The device refuses to lift beyond its capacity, preventing accidents.
-
Dust-Resistant Turbine: Enhanced durability for demanding environments.
How Does It Work?
-
Simple Operation:
-
Connect the turbine to the lifting tube via a suction hose.
-
Place the suction cup on the item—it’s instantly gripped by vacuum power.
-
Use the rotary/trigger control to raise or lower loads smoothly.
-
-
Effortless Mobility:
Once contracted, the tube supports the load’s weight, allowing you to move it effortlessly—even vertically or horizontally.
Flexible Installation Options
Customize your setup for maximum efficiency:
-

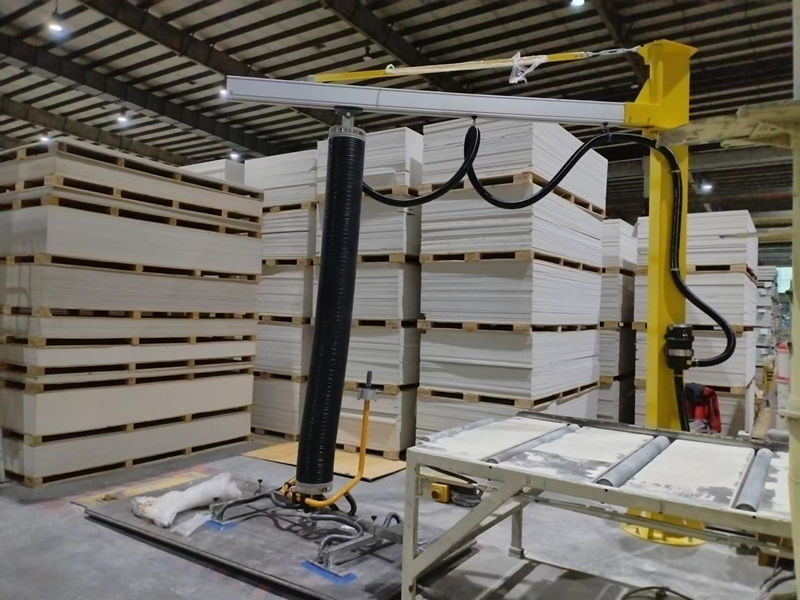

Bracket Cranes: Choose wall-mounted or column-mounted systems (2–6 meters).
-
Traveling Cranes: Ideal for dynamic workflows.
Where Can You Use the ESL-MD?
This powerhouse shines in industries like:
-
Agriculture & Food: Stack bags, move barrels, or handle produce.
-
Manufacturing & Logistics: Palletize cartons, lift sheet metal, or transport machinery parts.
-
Construction & Healthcare: Safely handle glass panels, wood boards, or medical equipment.
Real-World Applications:
-

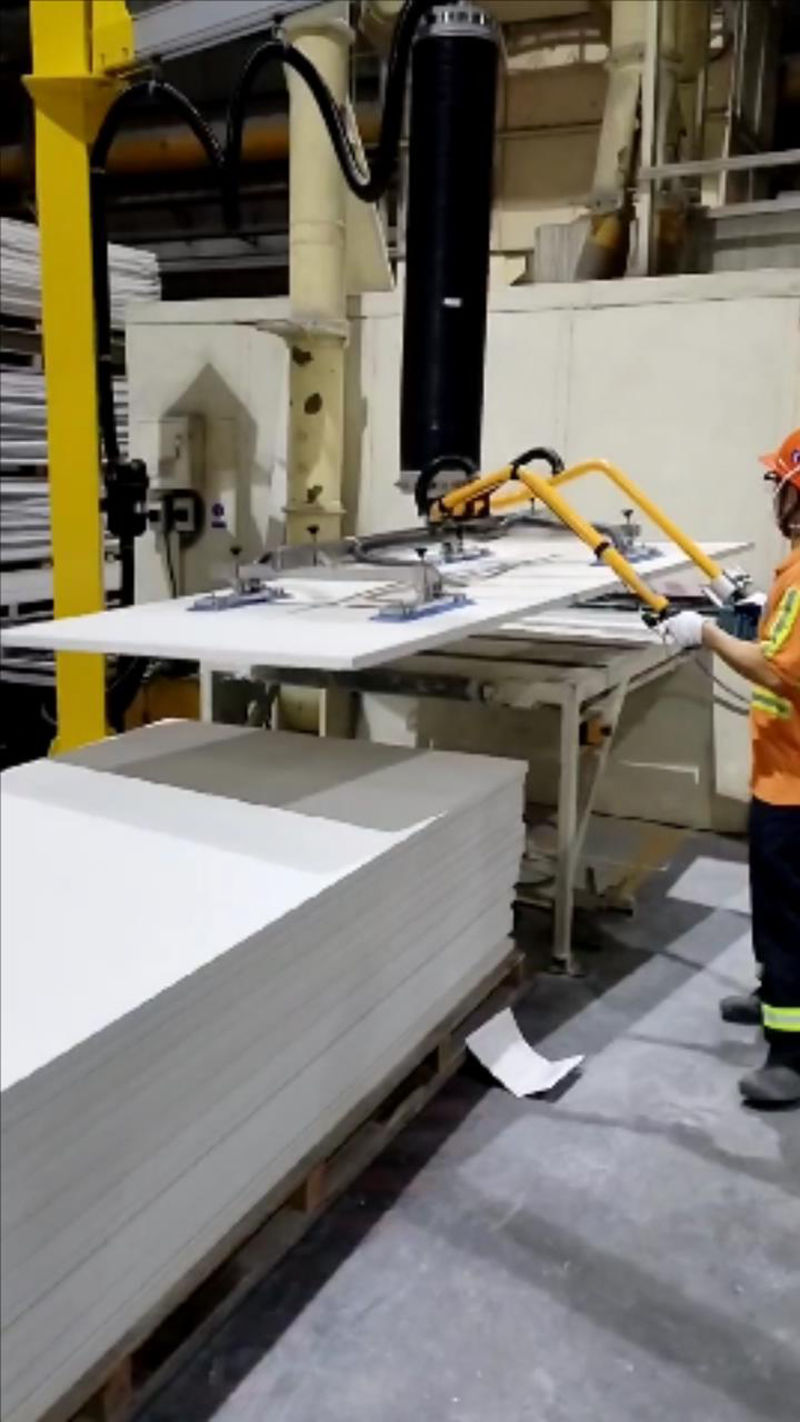

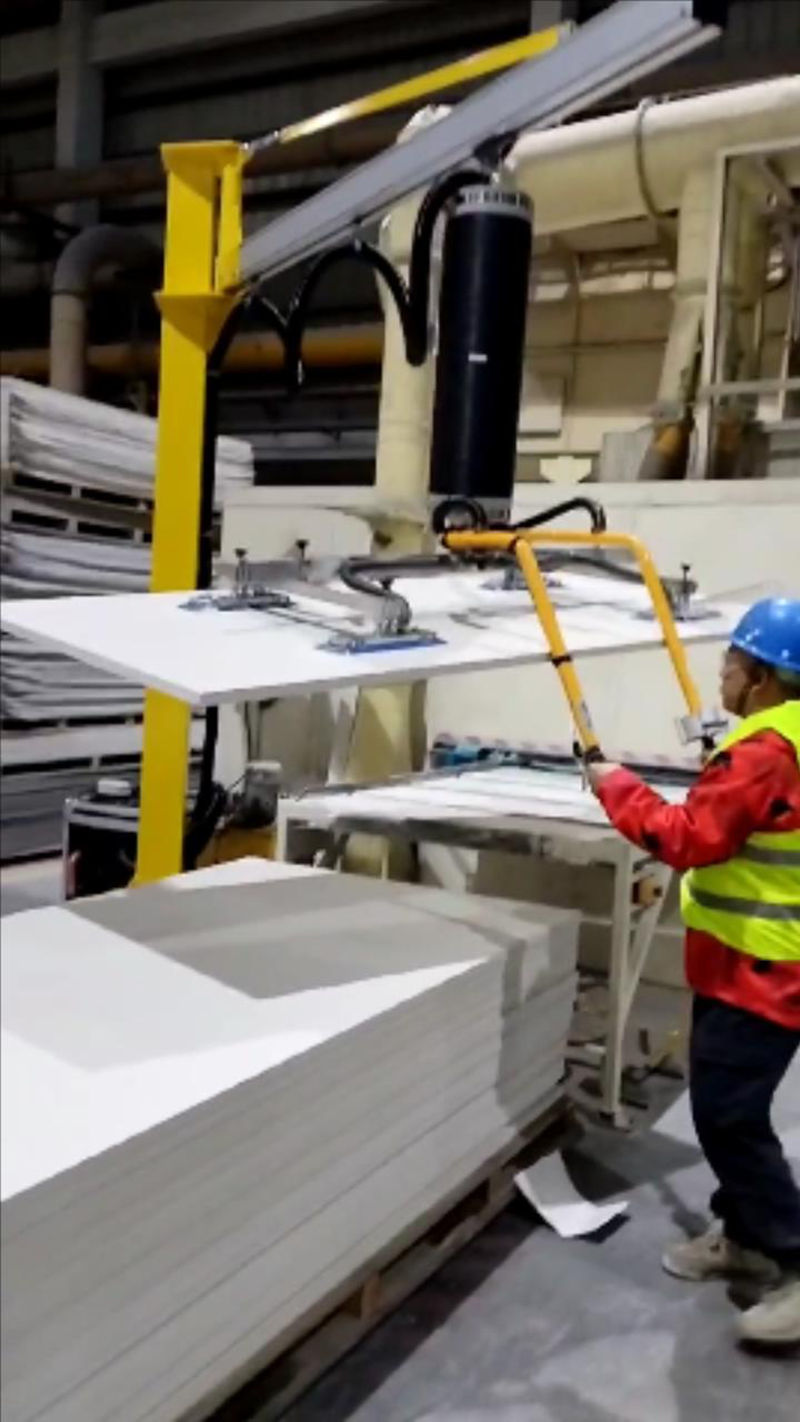

Stacking cartons from production lines onto pallets.
-
Packing water heaters into boxes without manual strain.
-
Suspending loads from jib cranes or roof rail tracks.
Key Features of ESL-MD Series
-
Dual Control Handlebars: Perfect for heavy, oversized materials.
-
Tilt Device Option: Rotate items from horizontal to vertical with ease.
-
Customizable Suction Heads: Tailored for unique shapes like rubber sheets or fragile glass.
Technical Specifications
| Model | Max. Load | Lifting Height | Power | Voltage |
|---|---|---|---|---|
| ESL-MD140/22 | 55kg | 1700–2500mm | 3.0kW | 380V/440V/660V |
| ESL-MD160/30 | 65kg | 1700–2500mm | 3.0kW | 380V/440V/660V |
| ESL-MD200/40 | 120kg | 1700–2500mm | 5.0kW | 380V/440V/660V |
| ESL-MD300/50 | 200kg | 1700–2500mm | 5.0kW | 380V/440V/660V |
Upgrade Your Workflow Today!
Why risk injury or waste time on manual labor? The Cowest ESL-MD Vacuum Tube Lifter combines safety, efficiency, and adaptability to transform your material handling process.
Ready to Lighten the Load?
Contact Cowest Machinery now to customize your ESL-MD lifter and discover how 30–200kg can feel weightless!
Cowest Machinery – Engineering Solutions for a Lighter Tomorrow.
