Introduction

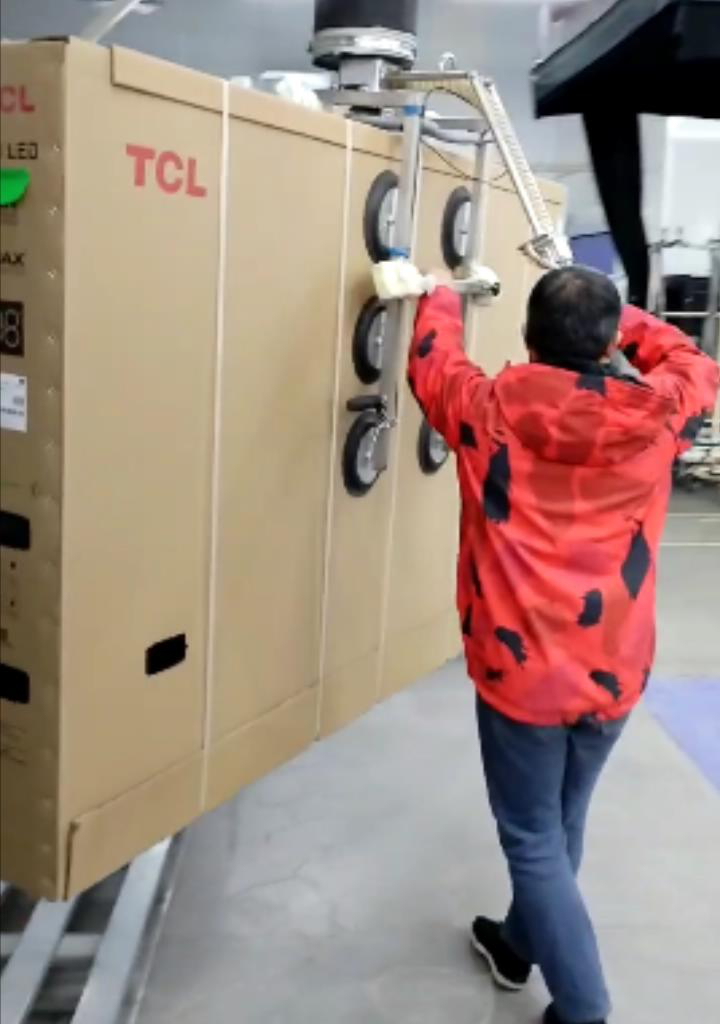

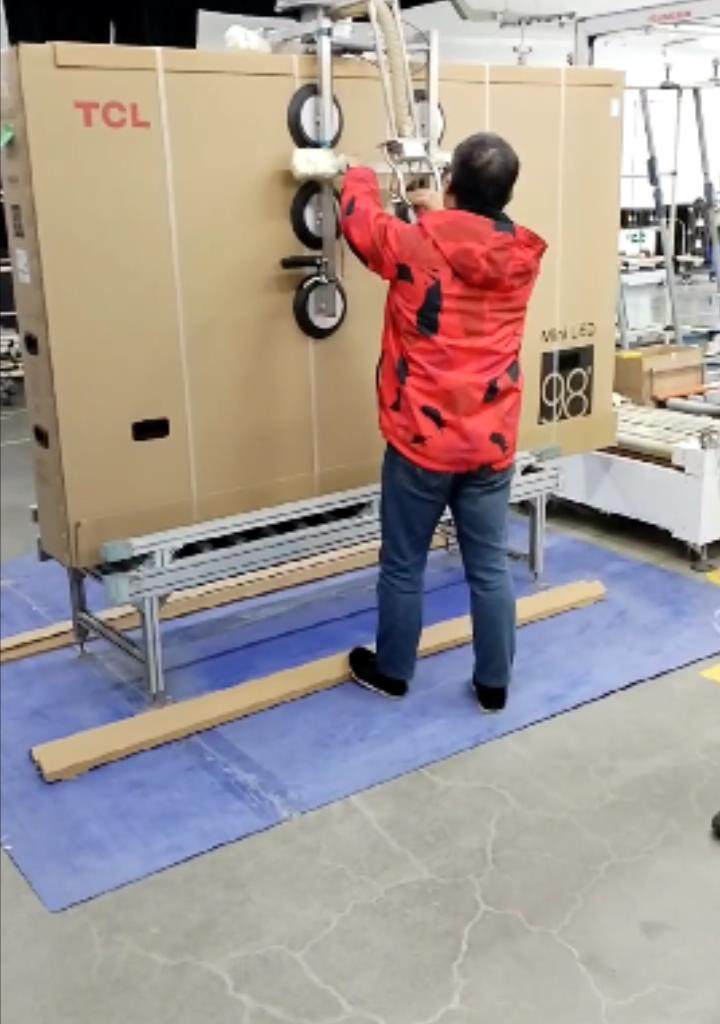

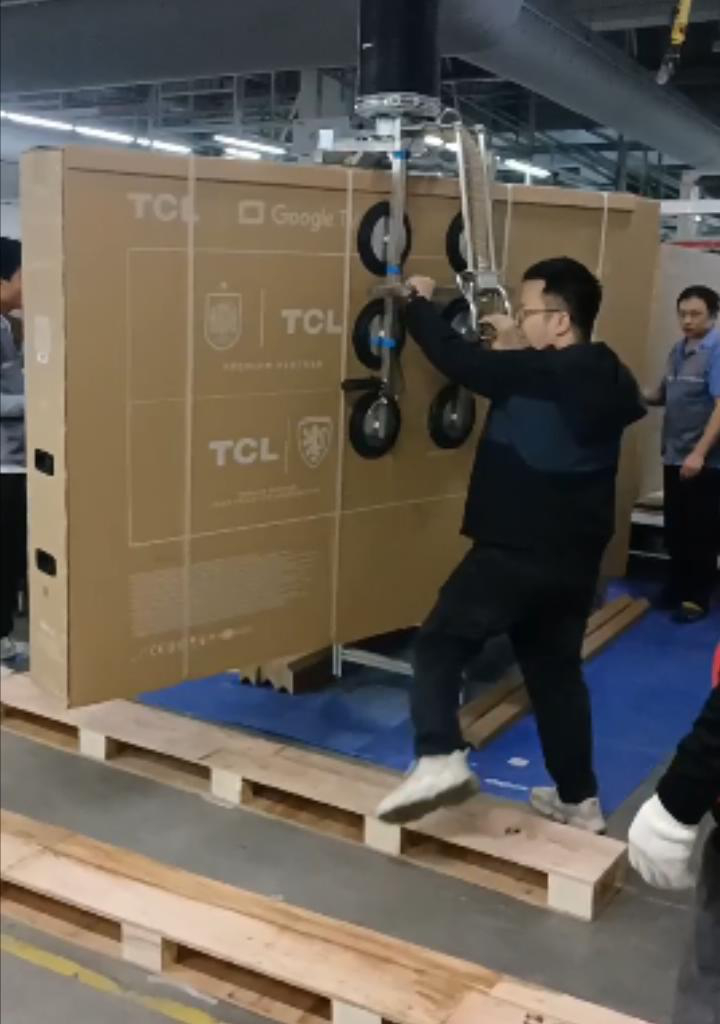

Cowest Machinery presents the ESL-MD series Vacuum Tube Lifter, a highly versatile tool designed for efficient and safe material handling in various industries. This lifter is particularly useful in TV production lines, where it can handle objects of any shape and size, from 30 kg to 200 kg. The ESL-MD series is ideal for lifting bags, cardboard boxes, casks, wood panels, sheet metals, and glazings, making it a valuable asset in many work environments.
Key Features
1. Versatility: The ESL-MD series can handle a wide range of materials, including bags, cardboard boxes, casks, wood panels, sheet metals, and glazings. It is suitable for objects weighing up to 200 kg.
2. Ergonomic Design: The lifter features ergonomic, curved pipe handles with a gripping and releasing switch at the end. This design allows operators to move or palletize low objects without bending down, reducing physical strain.
3. Simple Operation: The Vacuum Tube Lifter is easy to use. The turbine is connected to the lifting tube via a suction hose. When the suction cup contacts the object, the lift tube contracts, and the vacuum supports the load, making it easy to move. The rotary or trigger control allows for precise raising and lowering of the load.
4. Safety First: Safety is a top priority. The turbine is protected by a dust removal unit, and an anti-drop check valve ensures that the item will drop slowly to the floor in case of power failure, preventing any risk of slipping. If overloaded, the device will not lift the load, ensuring operator safety.
5. Installation Flexibility: The Vacuum Tube Lifter can be installed with a bracket crane (2 to 6 meters long), wall-mounted, column-mounted, or on a traveling crane. This flexibility makes it suitable for a variety of settings, including agriculture, chemical, food, healthcare, and hardware industries.
6. Customization Options: The MD series can be customized with a tilt device to lift materials from a horizontal to a vertical state. The suction head can also be tailored for special items, enhancing its versatility.
Product Parameters
- Model Type: ESL-MD140/22, ESL-MD160/30, ESL-MD180/30, ESL-MD200/40, ESL-MD275/50, ESL-MD300/50
- Max. Load Capacity: 55 kg, 65 kg, 80 kg, 120 kg, 150 kg, 200 kg
- Max. Lifting Height: 1700 mm / 2500 mm
- Vacuum System: Vacuum blower
- Voltage: 380V/440V/660V
- Power: 3.0 kW, 3.0 kW, 4.0 kW, 5.0 kW, 5.0 kW, 5.0 kW
- Handling Item: Bags, barrels, cardboard boxes, rubber, metal, glass, etc.
- Suction Head: Customizable for special items
Conclusion
The ESL-MD series Vacuum Tube Lifter from Cowest Machinery is an essential tool for any workplace that requires efficient and safe material handling. Its ease of use, safety features, and versatility make it an ideal solution for a wide range of applications, from TV production lines to various industrial settings. With its ergonomic design and customization options, the ESL-MD series is a reliable and user-friendly choice for handling heavy cartons and other items.
