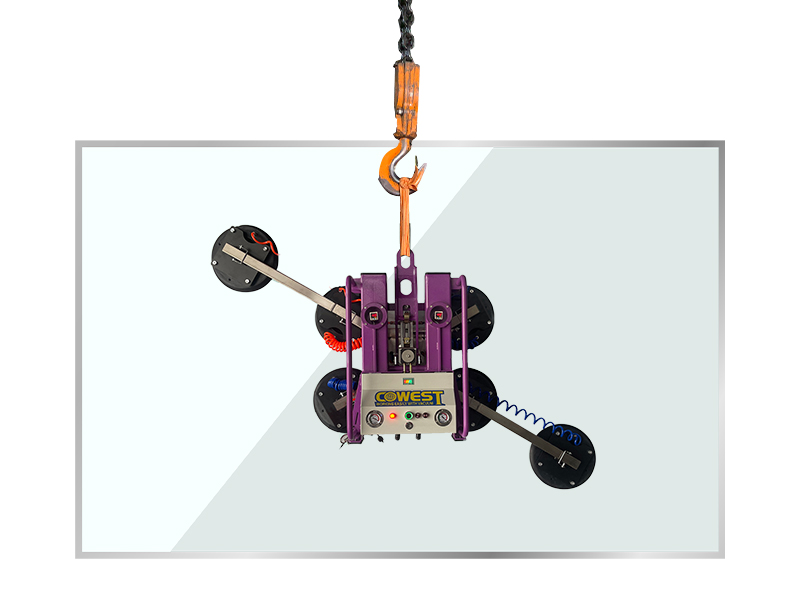

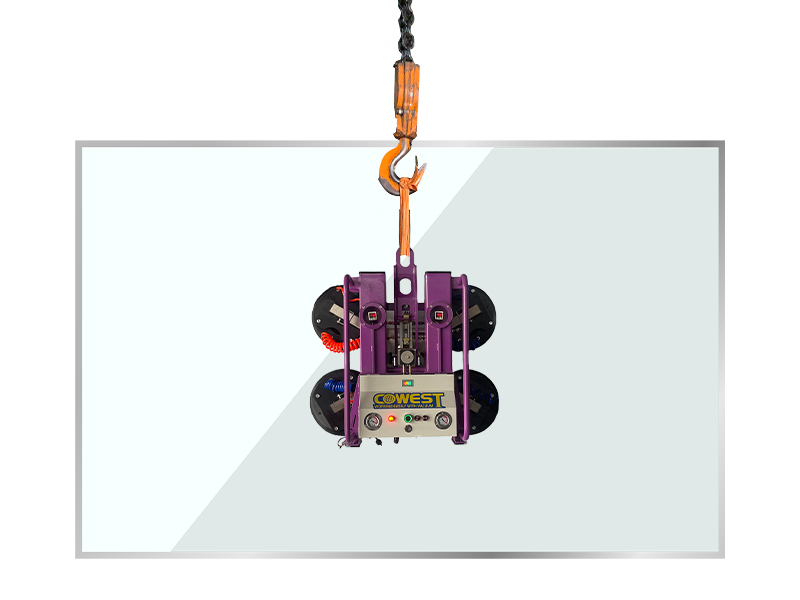

Core Technology and FeaturesThe Glassboy series glass lifters utilize high-performance glass suction cups and DC vacuum pump technology. Each model operates on DC battery power (12V-15Ah), eliminating the need for external power sources during operation. The digital display provides real-time monitoring of vacuum pressure and battery status, ensuring safe operation throughout the workday.
Model Comparison
-
Glassboy 4D: With four suction cups and 350kg capacity, this compact glass lifter (750×817×291mm) is ideal for standard glazing projects. Its 55kg self-weight makes it highly portable.
-
Glassboy 6D: Featuring six suction cups and 500kg capacity, this mid-range model offers balanced performance for most commercial applications. The 65kg unit maintains excellent maneuverability.
-
Glassboy 8D: The heavy-duty option with eight suction cups and 650kg capacity handles the most demanding glass panels. Despite its power, it weighs just 75kg for a construction-grade lifter.
Operational AdvantagesAll Glassboy models feature:
-
90-degree manual tilt and 360-degree rotation
-
Wireless and wired control options
-
Pulse smart vacuum control system
-
Extra hook coupling for vertical lifting
-
Compatibility with slightly rough surfaces
Safety SystemsThe series includes multiple protection mechanisms:
-
Low vacuum and low battery alerts
-
Charging protection circuits
-
Constant pressure maintenance
-
Visual and audible warning systems
ApplicationsThese glass lifting machines excel in:
-
Curtain wall installation
-
Large-format glass handling
-
Window replacement projects
-
Glass transportation in manufacturing
Maintenance and SupportCowest provides global technical support and spare parts for the Glassboy series. The durable construction requires minimal maintenance, with easily replaceable suction cups and standard battery components.
