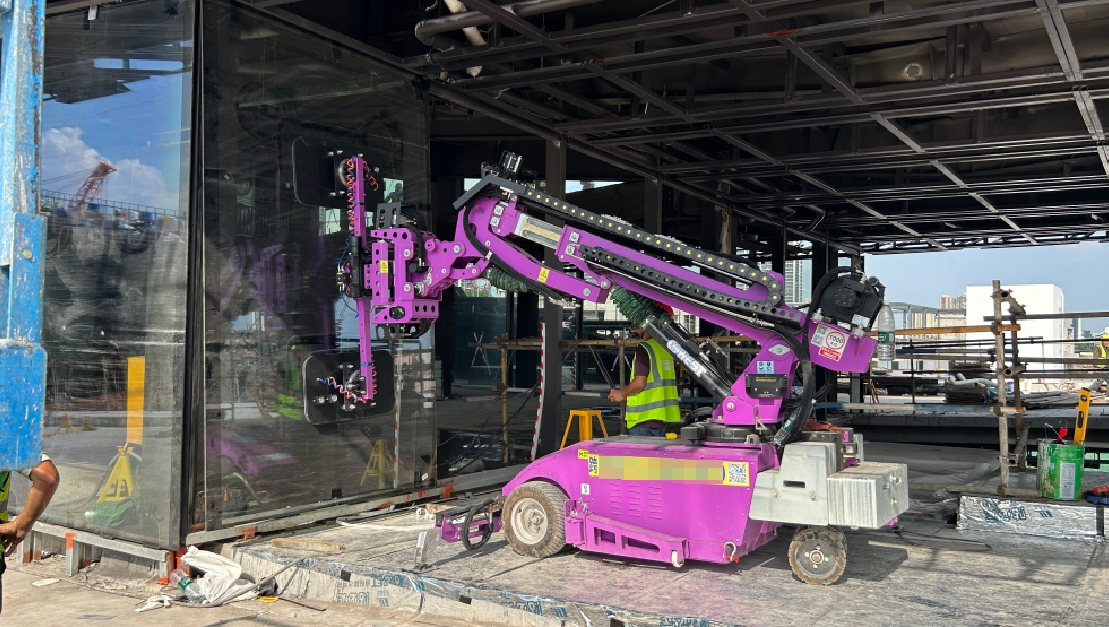

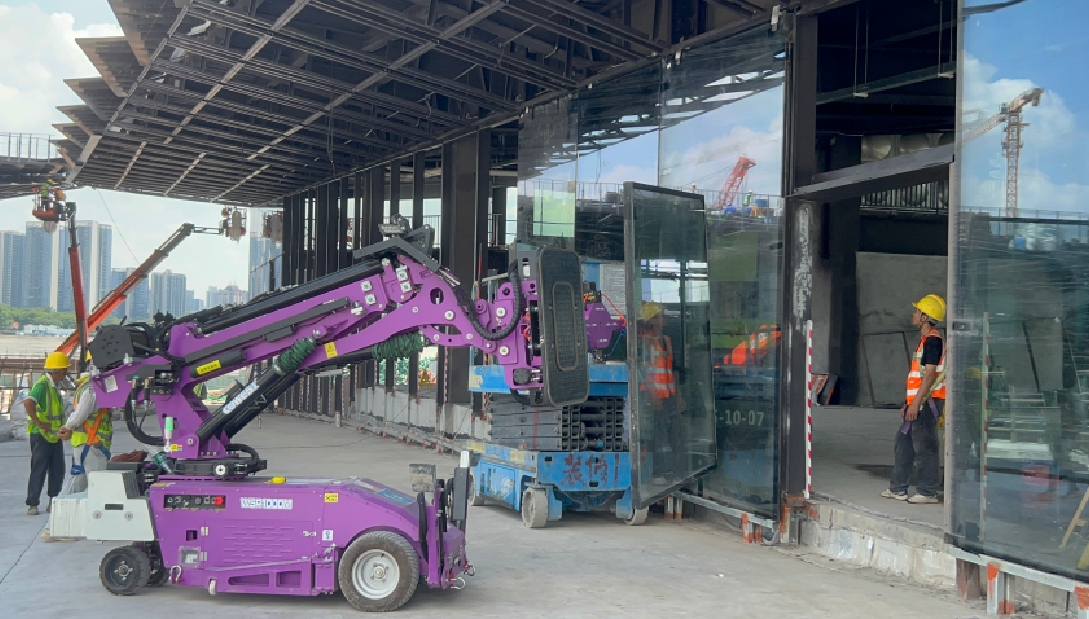

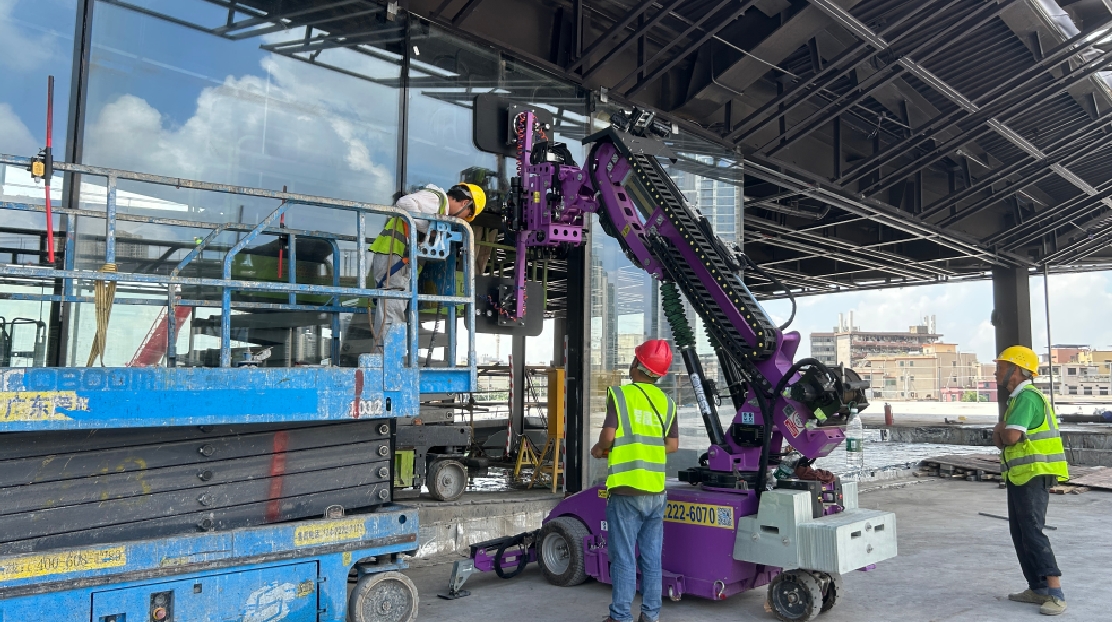

Modern construction demands efficient solutions for handling large glass panels, and the WSR-1000M glass installation robot from Cowest Machinery meets these challenges with precision engineering. This glazing robot combines hydraulic power with intelligent vacuum technology to streamline glass panel installation processes across industrial and construction applications.
Core Features and Technical Specifications
The WSR-1000M glass robot represents a significant advancement in material handling technology with its 1000kg maximum load capacity. Its hydraulic system provides three operational modes:
1000kg capacity with second ram retracted
675kg capacity with second ram extended
350kg capacity with third ram extended
Key performance metrics include:
5000mm maximum lifting height (ground to suction frame center)
2200mm maximum extension distance
3400mm maximum reach from front wheels to glass suction cups
180° maximum tilt angle for precise panel positioning
The machine's movement system features:
Automatic mobility with manual speed control
24V DC brushless motor (2.2kW drive power)
457mm solid front wheels and 300mm rear wheels
Hydraulic outriggers for stability during operation
Advanced Vacuum System for Secure Handling
The WSR-1000M's dual-pump vacuum system ensures reliable glass panel handling:
8×400mm aluminum suction cups with buffer springs
CV-35 vacuum pumps (35L/min flow, -85kPa pressure)
Digital vacuum switch (-60kPa start/-70kPa stop)
Independent safety tank with non-return valve
Visual monitoring through Red-Green vacuum meters
Integrated EW0 warning system (acoustic/visual alerts below 60% vacuum)
Operational Flexibility and Safety
This glass installation robot offers exceptional versatility:
360° continuous rotation of suction cup frame
±15° boom rotation range
±50mm side shifting capability
±75mm vertical adjustment
Multiple power options (battery/AC with 6-hour runtime)
Comprehensive safety monitoring system
Application Scenarios and Optional Attachments
Designed primarily for glass panels, the WSR-1000M also handles:
Marble and stone slabs
Metal sheets
Wooden panels
Available attachments enhance functionality:
Winch system for vertical lifting
Forklift attachment for palletized materials
Specialized suction cup configurations
Jib arm for precise positioning
Technical Specifications Summary
Dimensions: 3617×1298×1804mm (L×W×H)
Weight: 2977kg (including counterweight)
Power: 24V DC (2×12V-192Ah batteries)
Charging: 5 hours for 110-220V AC input
Hydraulic Power Unit: 1.2kW
