Core Performance Metrics

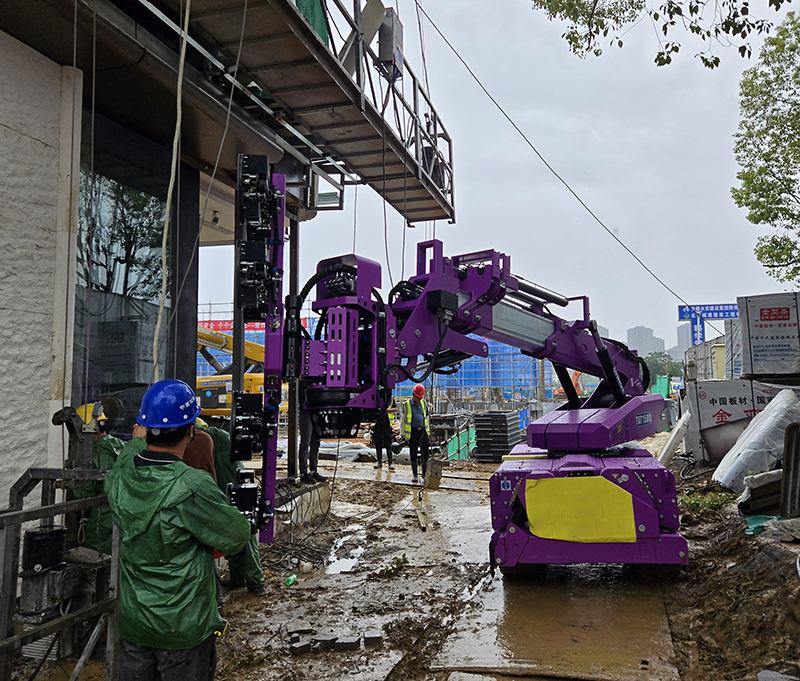

Load Capacity and ReachThe TAT-1500's three-stage extension boom illustrates proper capacity planning. With 1,500 kg capacity at retracted position and 1,000 kg at full extension, it maintains structural integrity across working ranges. Your project should match the robot's load curve to your typical panel weights and required working heights (up to 8.8 meters in this model).
Vacuum System ReliabilityEight 400mm glass suction cups with independent vacuum groups ensure fail-safe operation. When evaluating glass cup suction systems, verify:
-
Number and diameter of glass sucker cups
-
Vacuum reserve capacity
-
Alarm systems for pressure drops The TAT-1500's segregated vacuum zones continue functioning even if one cup loses seal.
Operational Features
Mobility and StabilityCrawler tracks (4 km/h speed) with 15% gradeability handle rough terrain better than wheeled alternatives. Hydraulic outriggers provide essential stability during glass lifting operations. Consider:
-
Terrain types at your worksites
-
Required positioning precision
-
Setup/teardown time
Control SystemsFull wireless remote control separates operators from danger zones. The TAT-1500 offers:
-
360° main arm rotation
-
±90° side turn capability
-
Micro-adjustments (±75mm horizontal/±100mm vertical) These features enable precise glass placement without physical contact.
Safety and Efficiency Factors
Built-in ProtectionsModern glass installation robots should include:
-
Anti-tip sensors
-
Overload warnings
-
Emergency stop
-
Auto-braking systems The TAT-1500 incorporates all these plus vacuum/battery monitoring.
Power ManagementDual power (battery/220V AC) with 4-6 hour runtime ensures continuous operation. Evaluate:
-
Charging infrastructure
-
Shift duration requirements
-
Backup power options
Practical Considerations
Attachment VersatilityQuick-change interfaces for winches, fork teeth, and specialized glass suction cups allow single-machine multi-functionality. The TAT-1500's modular design reduces equipment costs.
Transport LogisticsAt 5,266 kg and 4.475m length, verify:
-
Site access restrictions
-
Transportation equipment
-
Assembly requirements
The Cowest Machinery Advantage
The TAT-1500 glass robot exemplifies ideal heavy glass handling characteristics:
-
Balanced capacity/height ratio
-
Rugged mobility system
-
Comprehensive safety features
-
Operator-friendly controls
-
Flexible configuration options
When selecting equipment, compare specifications against your specific project requirements rather than seeking maximum numbers in every category. The right balance of power, precision, and protection will deliver optimal results.
