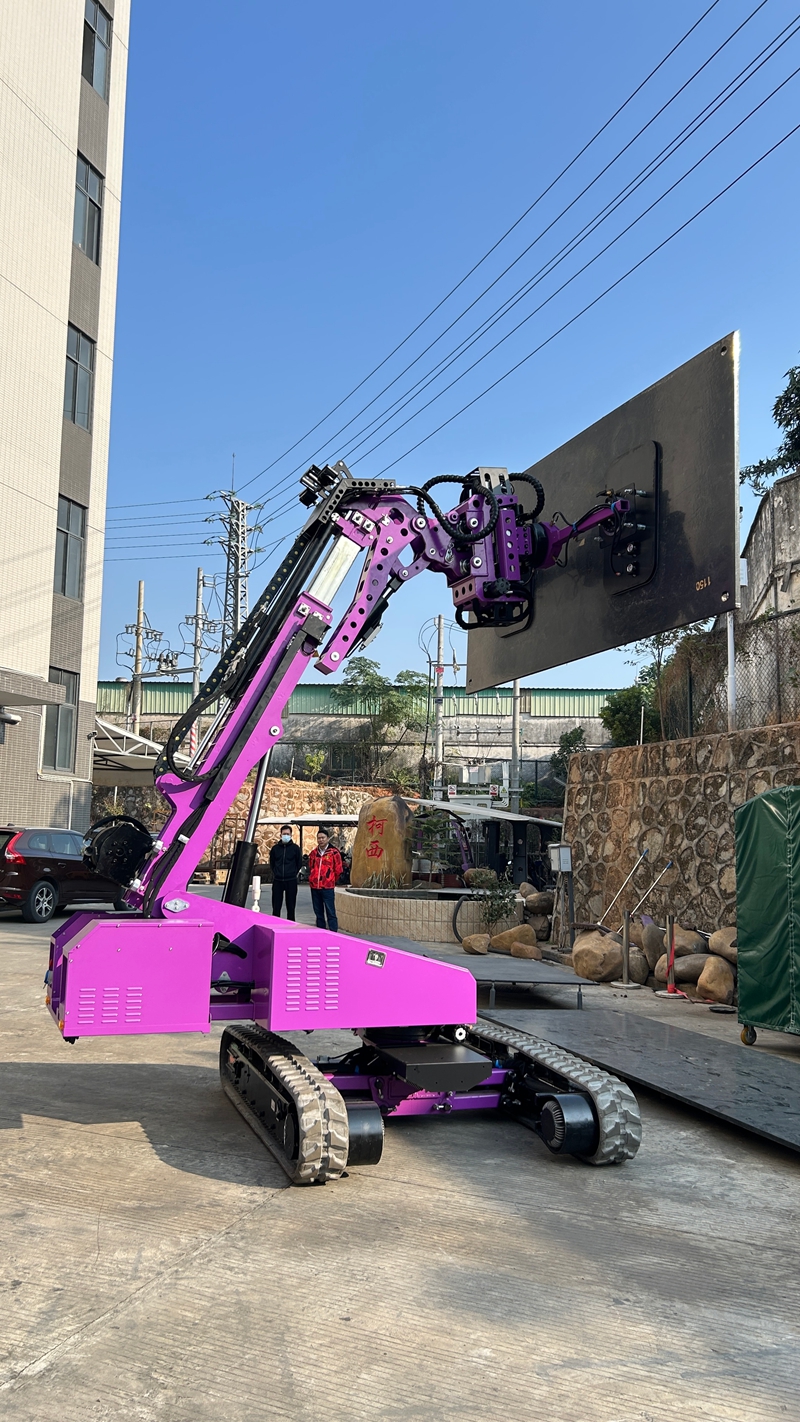

Are you tired of the troubles in traditional glass installation? Heavy glass panels are hard to carry, uneven construction sites cause safety risks, and manual operation is time-consuming and inefficient. Now, the TAT-1000 Glass Installation Robot is here to solve all these problems! It combines strong load capacity, smart adjustment functions and flexible movement, making glass installation easier, safer and more efficient than ever before.
The TAT-1000 is designed for professional glass installation scenarios, with outstanding performance that meets various construction needs. Whether it's large-scale commercial building curtain walls, high-rise residential glass windows or large glass partitions, the TAT-1000 can handle them easily.
Powerful Performance, Easy Handling of Heavy Loads
The TAT-1000 has excellent load-bearing capacity. With suction cup attachment, it can lift up to 1000kg of glass; when equipped with winch or forklift attachment, the maximum load capacity reaches 1500kg. This means you can install large and heavy glass panels without relying on multiple workers, greatly reducing labor intensity.
It is equipped with two 500*850mm suction cups and a dual vacuum system, which provides strong and stable adsorption force. You don't have to worry about glass slipping during the installation process, ensuring the safety of both personnel and materials.
Smart Adjustment, Adapt to Various Terrain
The TAT-1000 adopts continuous track design, which can move smoothly on various complex construction sites. It has automatic left and right track leveling function, with a maximum auto-leveling slope of 10°, and can climb up 15° slopes. The track can shift 400mm sideways and 320mm up and down, and the upper arm also supports automatic leveling. These functions allow the robot to stay stable even on uneven ground, ensuring precise glass positioning.
In terms of installation adjustment, the TAT-1000 is extremely flexible. It can rotate 360° endlessly, tilt 120°, and turn 90° on both sides. The maximum lifting height is 6150mm, and the maximum horizontal outreach is 2200mm. In addition, it supports 100mm sideways shifting and 150mm up & down shifting, and the counterweight can extend 300mm. These adjustments enable accurate installation of glass in different positions and angles.
Flexible Power Supply, Long-Lasting Work
The TAT-1000 is equipped with a 51.2V300AH battery, supporting battery and plug-in dual power supply modes. You can use the battery mode for flexible movement on the construction site without being restricted by power cords; when working for a long time, you can use the plug-in mode. The maximum working time of the battery is 6 hours, which can fully meet the needs of a whole day's work. The charging power supports AC220V/110V~240V, making charging convenient anywhere.
Multiple Attachments, Wide Application Range
The TAT-1000 offers three optional attachment heads: forklift, winch and suction cup. You can choose the appropriate attachment according to different glass types and installation requirements, making the robot suitable for various glass installation tasks. Its minimum dimensions are 2672*1377*2061mm, which is compact enough to move in narrow construction spaces.
Choosing the TAT-1000 Glass Installation Robot is choosing efficiency, safety and reliability. It can not only improve your installation efficiency and reduce labor costs, but also ensure the quality and safety of installation work.
Don't hesitate! Contact us today to learn more about the TAT-1000 and let it bring new changes to your glass installation work!
